304L SS Butt Welded Cap Sand Rolling Stainless Steel Butt Welded Pipe Fittings

Brand Name : Yuhao

Model Number : Butt Weld Pipe Fittings

Certification : ASTM, AISI, GB, DIN, JIS

Place of Origin : China

MOQ : 100kgs

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 15days

Packaging Details : Standard sea worth bundles,Standard Plywood cases

Supply Ability : 2000tons/per month

Wall Thickness : SCH5S, SCH10S, SCH20S, SCH40S, SCH80, SCH160

Standard : ASTM A403, ASTM A815, ASTM A234

Surface Finish : Polished, Rolled Sand, Pickling

Material : 304, 304L, 316, 316L, 321, 310

Pipe Fitting Type : Cap

Connection Type : Butt Welded

Application : Oil, Gas, Chemical, Petrochemical, Power, Industrial Piping, Mechanical Manufacturing

Dimensions : DN15-DN800

Country Of Origin : China

Contact Now

304L SS Butt Welded Cap Sand Rolling Stainless Steel Butt Welded Pipe Fittings


►Products Description

A steel pipe cap, also known as a steel plug, is used to seal the end of a pipe, either by welding or threading onto the external pipe end. Its primary function is to close the pipeline, similar to a pipe plug. Unlike a detachable blind plate, a welded steel cap is permanent. The cap can take various forms, including convex, conical, variable diameter, flat, or constricted designs. Convex caps come in shapes like hemispherical, elliptical, dish, and spherical. While hemispherical caps are challenging to manufacture due to force distribution, they are feasible from a production perspective.

►Product Size

DN NPS OD Nominal Wall Thickness
Schss Sch10S Sch405 Sch8os Sch10 Sch20 Sch30 STD Sch40 Sch60 XS
6 1/8 10.3 - 1.24 1.73 2.41 - - - 1.73 1.73 - 2.41
8 1/4 13.7 1.65 2.24 3.02 - - - 2.24 2.24 - 3.02
10 3/8 17.1 - 1.65 2.31 3.2 - - - 2.31 2.31 - 3.2
15 1/2 21.3 1.65 2.11 2.77 3.73 - - - 2.77 2.77 - 3.73
20 3/4 26.7 1.65 2.11 2.87 3.91 - - - 2.87 2.87 - 3.91
25 1 33.4 1.65 2.77 3.38 4.55 - - - 3.38 3.38 - 4.55
32 1 1/4 42.2 1.65 2.77 3.56 4.85 - - - 3.56 3.56 - 4.85
40 1 1/2 48.3 1.65 2.77 3.68 5.08 - - - 3.68 3.68 - 5.08
50 2 60.3 1.65 2.77 3.91 5.54 - - - 3.91 3.91 - 5.54
65 2 1/2 73 2.11 3.05 5.16 7.01 - - - 5.16 5.16 - 7.01
80 3 88.9 2.11 3.05 5.49 7.62 - - - 5.49 5.49 - 7.62
90 3 1/2 101.6 2.11 3.05 5.74 8.08 - - - 5.74 5.74 - 8.08
100 4 114.3 2.11 3.05 6.02 8.56 - - - 6.02 6.02 - 8.56
125 5 141.3 2.77 3.4 6.55 9.53 - - - 6.55 6.55 - 9.53
150 6 168.3 2.77 3.4 7.11 10.97 - - - 7.11 7.11 - 10.97
200 8 219.1 2.77 3.76 8.18 12.7 - 6.35 7.04 8.18 8.18 10.31 12.7
250 10 273 3.4 4.19 9.27 12.7 - 6.35 7.8 9.27 9.27 12.7 12.7
300 12 323.8 3.96 4.57 9.53 12.7 - 6.35 8.38 9.53 10.31 14.27 12.7
350 14 355.6 3.96 4.78 - - 6.35 7.92 9.53 9.53 11.13 15.09 12.7
400 16 406.4 4.19 4.78 - 6.35 7.92 9.53 9.53 12.7 16.66 12.7
450 18 457 4.19 4.78 - - 6.35 7.92 11.13 9.53 14.27 19.05 12.7
500 20 508 4.78 5.54 - - 6.35 9.53 12.7 9.53 15.09 20.62 12.7

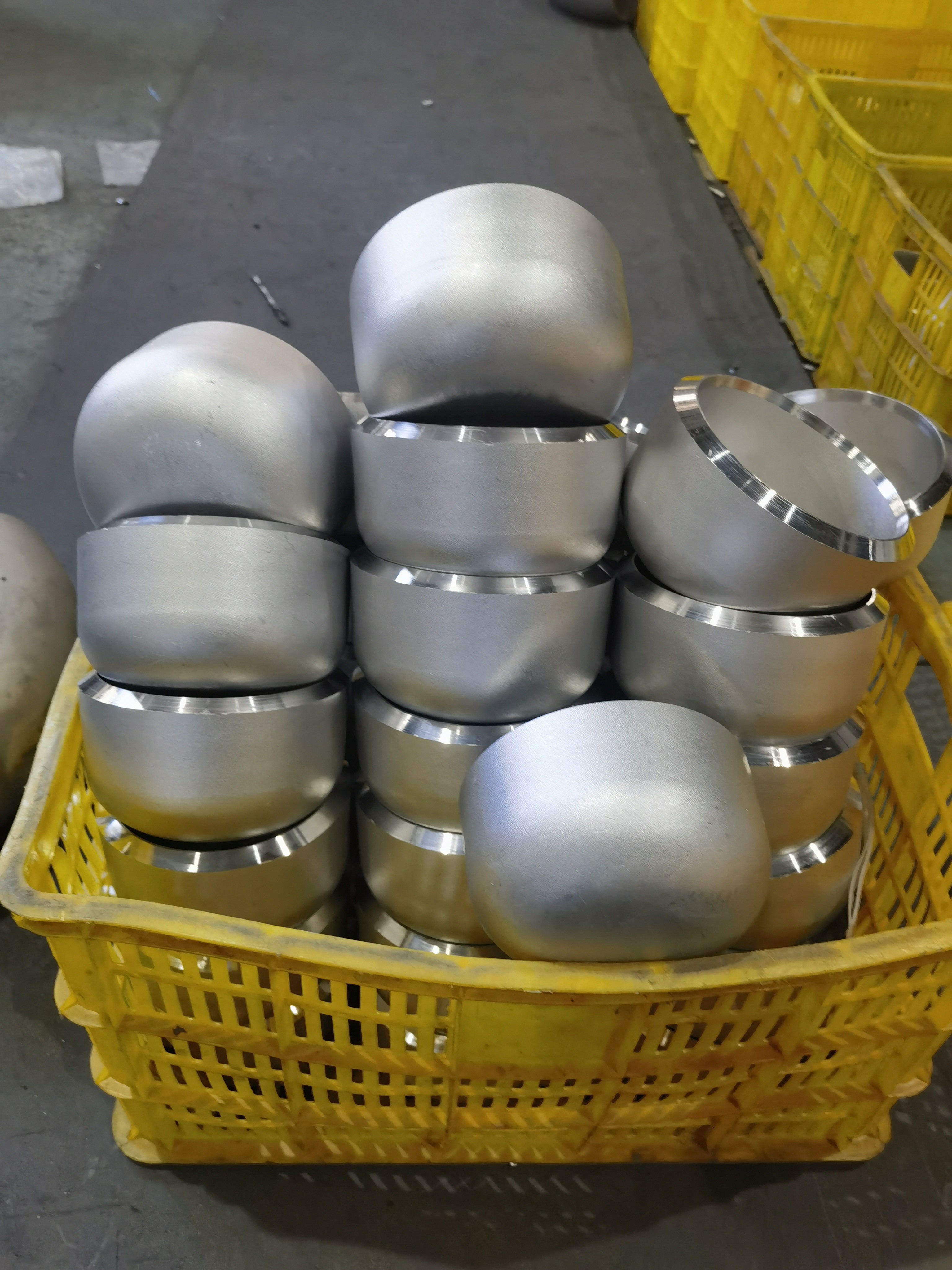

►Shot Shoot

304L SS Butt Welded Cap Sand Rolling Stainless Steel Butt Welded Pipe Fittings304L SS Butt Welded Cap Sand Rolling Stainless Steel Butt Welded Pipe Fittings

304L SS Butt Welded Cap Sand Rolling Stainless Steel Butt Welded Pipe Fittings

►FAQ

Q1: What is product can you buy from YUHAO?
A: Various sizes and models of flanges and pipe fittings, and we accept customized.

Q2: Do you provide samples ? Is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q3: How long is your production lead time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q4: Can you supply what's the service?

A: We can supply the kinds of matel raw materies and products,such as pipes,pipe fittings,flanges,coil,sheet,round bar and so on...

Q5: How do you ensure product quality?

A: We have a dedicated team of experts who rigorously inspect each stage of the production process. Every product undergoes quality testing at our factory before it is shipped.
